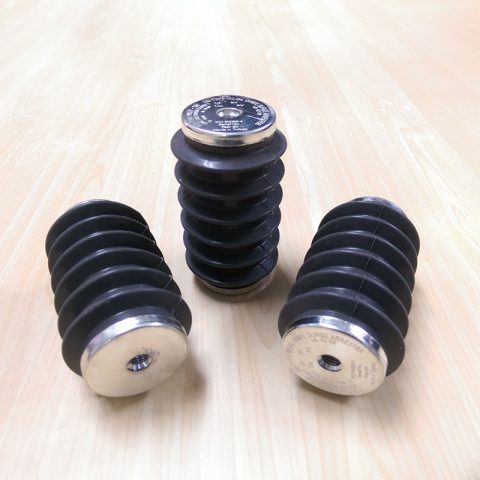

PMSP-DD TYPE SURGE ARRESTERS
Sheath Voltage Limiters
In accordance with TS-EN 60099-4 and IEC 60099-4 we are producing PMSP-DD type 10 kA; 1.8 to 18 kV polymer housed metal oxide sheath voltage limiter surge arresters.
Sheath voltage limiter surge arresters are used to limit induced over voltages due to short circuit currents.
Technical Data:
| Type | PMSP-DD |
|---|---|
| Nominal discharge current (8/20 µs) | 10 kA |
| High current impulse (4/10 µs) | 100 kA |
| Long duration current impulse | 250 A, 2000 µs |
| Rated frequency | 50 Hz |
| Pressure relief capability | 16 kA |
