PMPP TYPE SURGE ARRESTERS

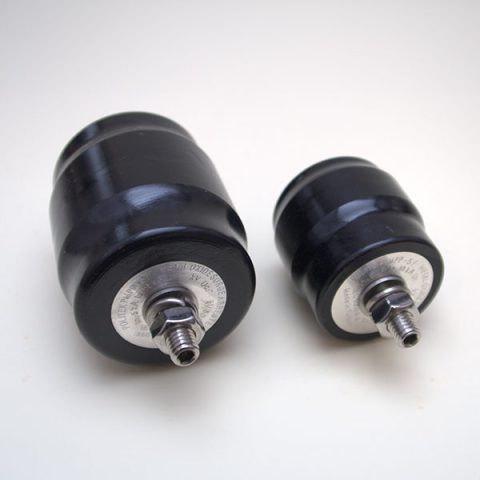

PMPP type surge arresters
In accordance with TS-EN 60099-4 and IEC 60099-4 we are producing PMPP type 5kA; 1 kV to 6 kV surge arresters to be used indoor to protect the systems and equipments against overvoltages.
Technical Data:
| Type | PMPP-5/1…6 |
|---|---|
| Nominal discharge current (8/20 µs) | 5 kA |
| High current impulse (4/10 µs) | 65 kA |
| Long duration current impulse | 75 A |
| Rated frequency | 50 Hz |
| Energy rating | 1.4 kJ/kV |
